3D Scan to CAD Inspection

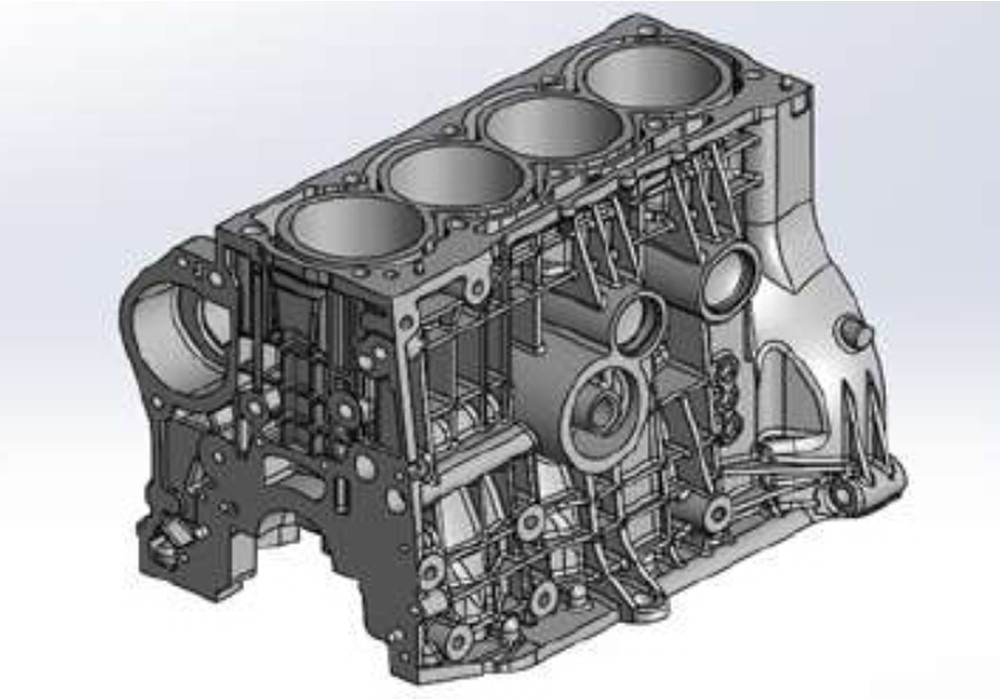

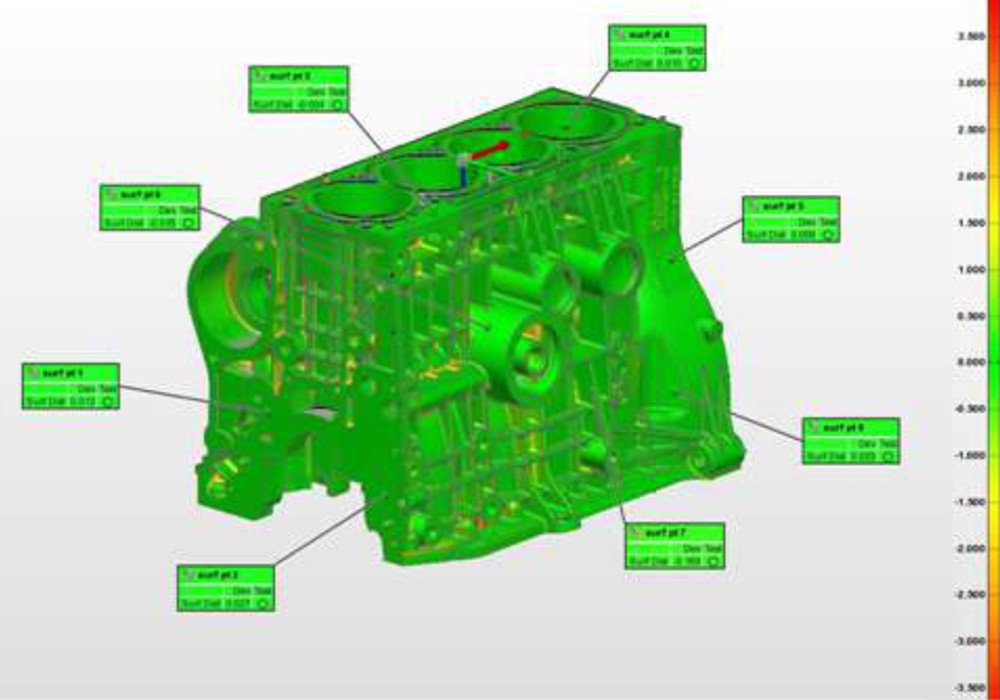

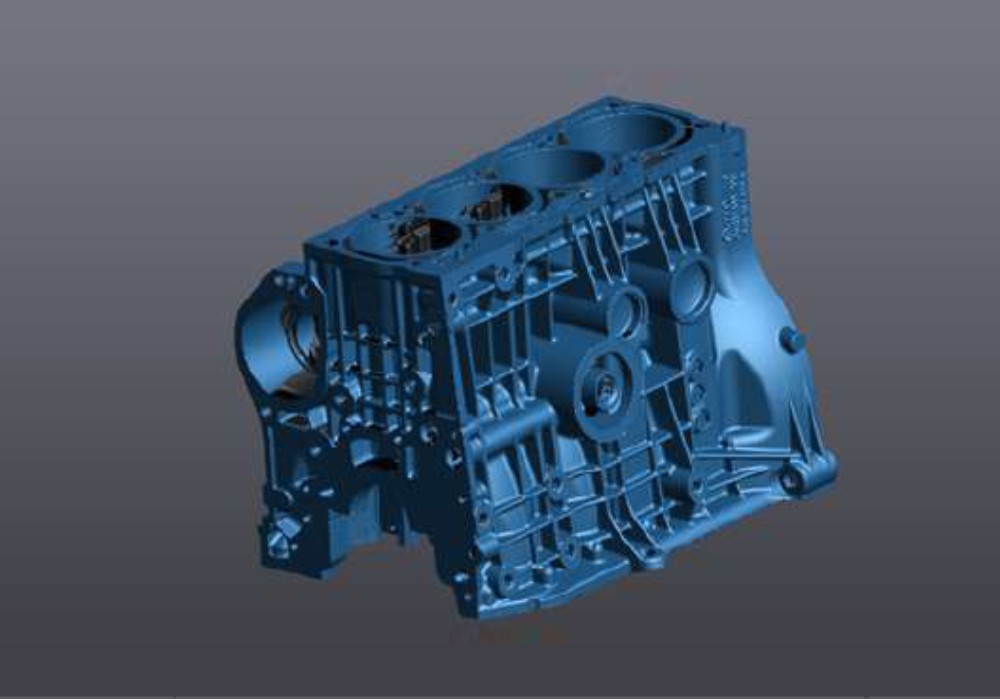

Using 3D Scanning techniques, the captured point cloud data through contact and non-contact scanners if overlapped with existing CAD models to address many use cases like to map surface deviation, inspection results etc.

Application areas & business benefits of the 3d scan to cad inspection

• Flush point and gap point inspection to ensure the parts will fit together on the first try.
• Capture engineering optimizations inherent in the manufactured parts.
• Quick and efficient way to compare part as designed to as manufactured.
• Most efficient method for inspecting the component from all sides and views.
• Cross-section inspection for warpage, defects, and tolerance reset and recheck.
• Complex 3D inspection with automated reports helps users pinpoint defects, enabling faster root-cause identification and troubleshooting.
